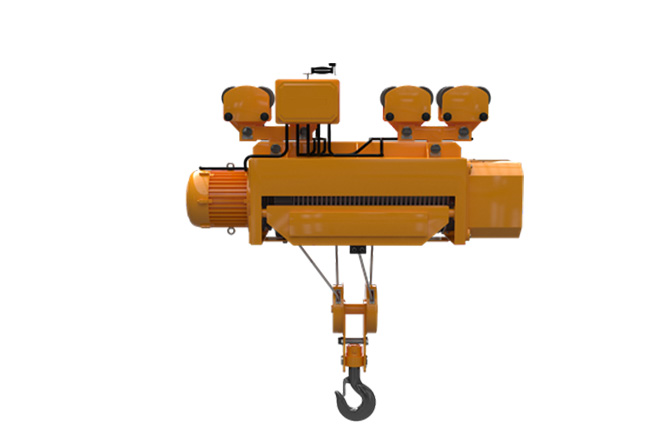

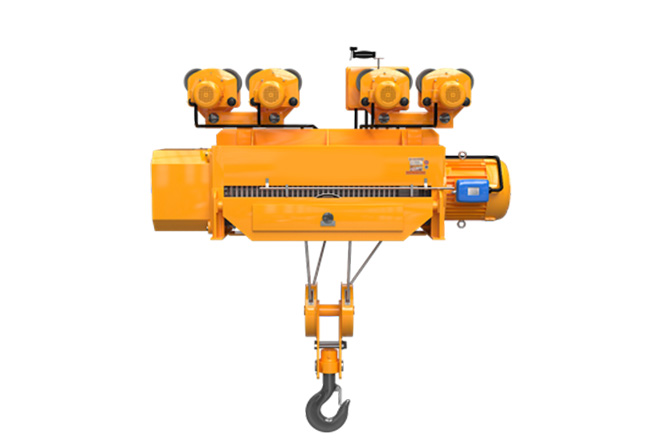

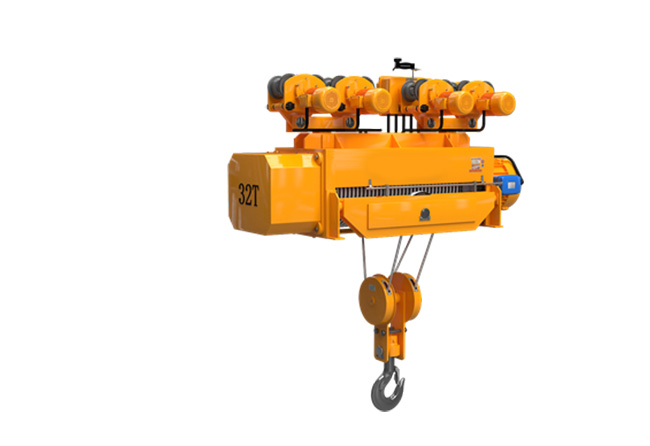

16t~100t-Single Girder Hoist

Main Features

Model: M3 (HC/HM)、M4 (FMHC/FMHM )

Technical Parameters

Lifting capacity(t)	16	20	25	32	40	50	100
Lifting height(m)	9-30	9-30	9-30	9-30	9-24	9-24	9-24
Pulley ratio	1/4 1/2	1/4	1/4	1/4	1/6	1/6	1/6
Pulley ratio	1/4 1/2	1/4	1/4	1/4	1/6	1/6	1/6
Lifting speed(m/min)	3.（0.35/3.5）6/0.6	4(0.4/4)	3（0.3/3）	3（0.3/3）	2(0.2/2)	2(0.2/2)	2(0.2/2)
Lifting powerkw	4-pole 18.5 6-pole 18.5	4-pole18.5	6-pole18.5	6-pole18.5	6-pole18.5	6-pole18.5	6-pole18.5*2
Running speed(m/min)	20	20	20	20	20	Fixed	Fixed
Operating power(kw)	0.82 1.52	0.8*4	0.8*4	1.5*4	1.5*4	Fixed	Fixed
How to operate	Handle/remote control	Handle/remote control	Handle/remote control	Handle/remote control	Handle/remote control	Handle/remote control	Handle/remote control
Job Level	M3/M4	M3/M4	M3/M4	M3/M4	M3/M4	M3/M4	M3/M4
power supply	3P 380V 50HZ	3P 380V 50HZ	3P 380V 50HZ	3P 380V 50HZ	3P 380V 50HZ	3P 380V 50HZ	3P 380V 50HZ
