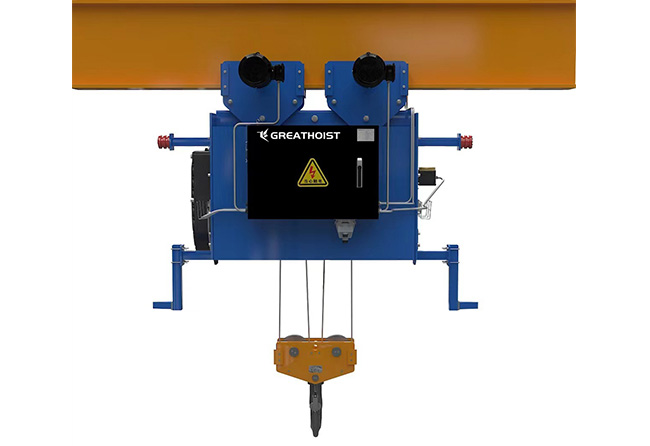

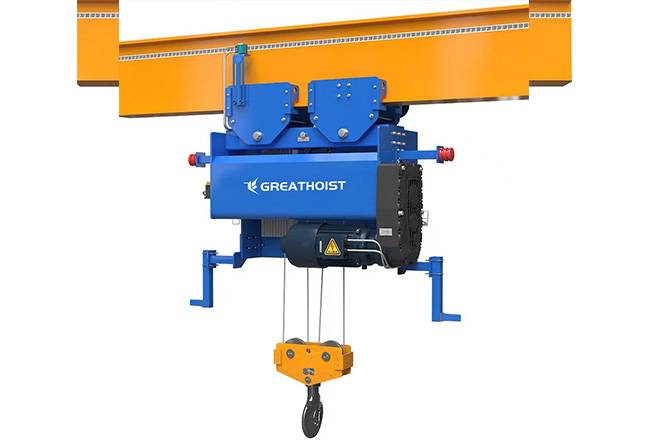

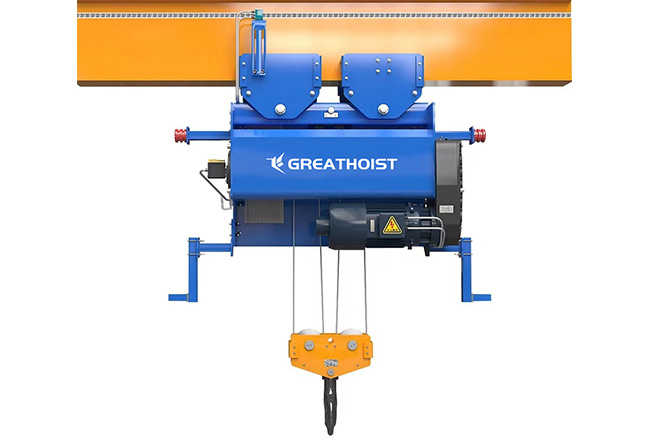

This product is designed for the new pickling galvanizing industry special products, low headroom compact, suitable for acid house and track limited sites, can maximize the effective lifting height; It owns following features.
Low headroom, compacted design
Double electron limit
Electron limit plus spiral limit
Protection class IP55
Working class M5 or M6

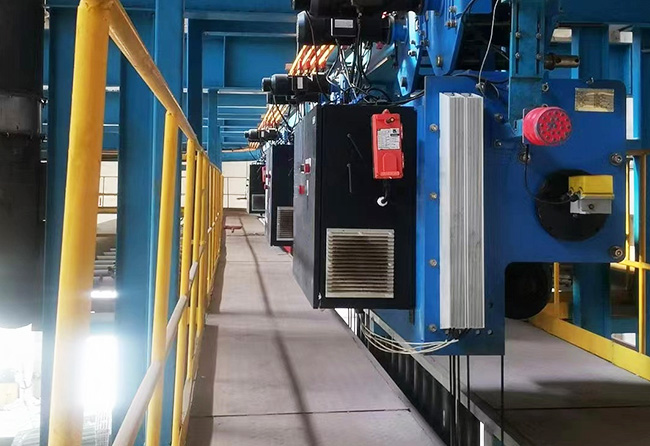

Applicable place: acid house and track limited sites
Purpose: special for pickling and galvanizing industry
|
Capacity(t) |
3 |
5 |
10 |
|
Hoisting height (m) |
6-12 |
6-12 |
6-12 |
|
Reeving Ratio |
2/4 |
2/4 |
2/4 |
|
Hoisting speed (m/min) |
1-10 |
1-10 |
0.8-8 |
|
Hoisting motor (kw) |
6.1 |
9.5 |
16 |
|
Traveling speed (m/min) |
0-20 |
0-20 |
0-20 |
|
Traveling motor (kw) |
0.37*2 |
0.37*2 |
0.75*2 |
|
Steel wire rope |
IWR |
IWR |
IWR |
|
IP Protection |
IP54/55 |
IP54/55 |
IP54/55 |
|
Insulation class |
F |
F |
F |
|
Class |
M5 or M6 |
M5 or M6 |
M5 or M6 |
|
Operation |
Remote control/ Full Automatic |
||
|
Power supply |
3Ph,380V,50Hz |
||
